GLOBE VALVE -STRAIGHT PATTERN - API 602
Specification
CONSTRUCTION : STRAIGHT PATTERN
DISC : SEMI SWIVEL PLUG
SEAT : INTEGRAL + OVERLAY
STEM : RISING STEM
BACKSEAT : INTEGRAL
END CONNECTION : SOCKET WELD
: NPT-F
: SOCKET WELD X NPT-F
BONNET : BOLTED BONNET
TEMP. & PRESSURE : API 602
TESTING : API 598
About this product
Globe Valve is a type of valve used for regulating flow in a pipeline consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body and also suitable for every full open or full closed pipeline and on-off equipment facility. Opening and closing the valves by stem through the seat axis. Commonly used in oil and gas industry. Globe valve have 2 construction;

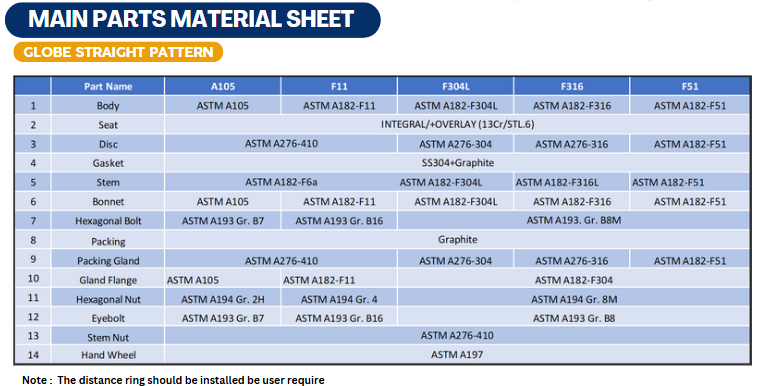

Technical Specification
