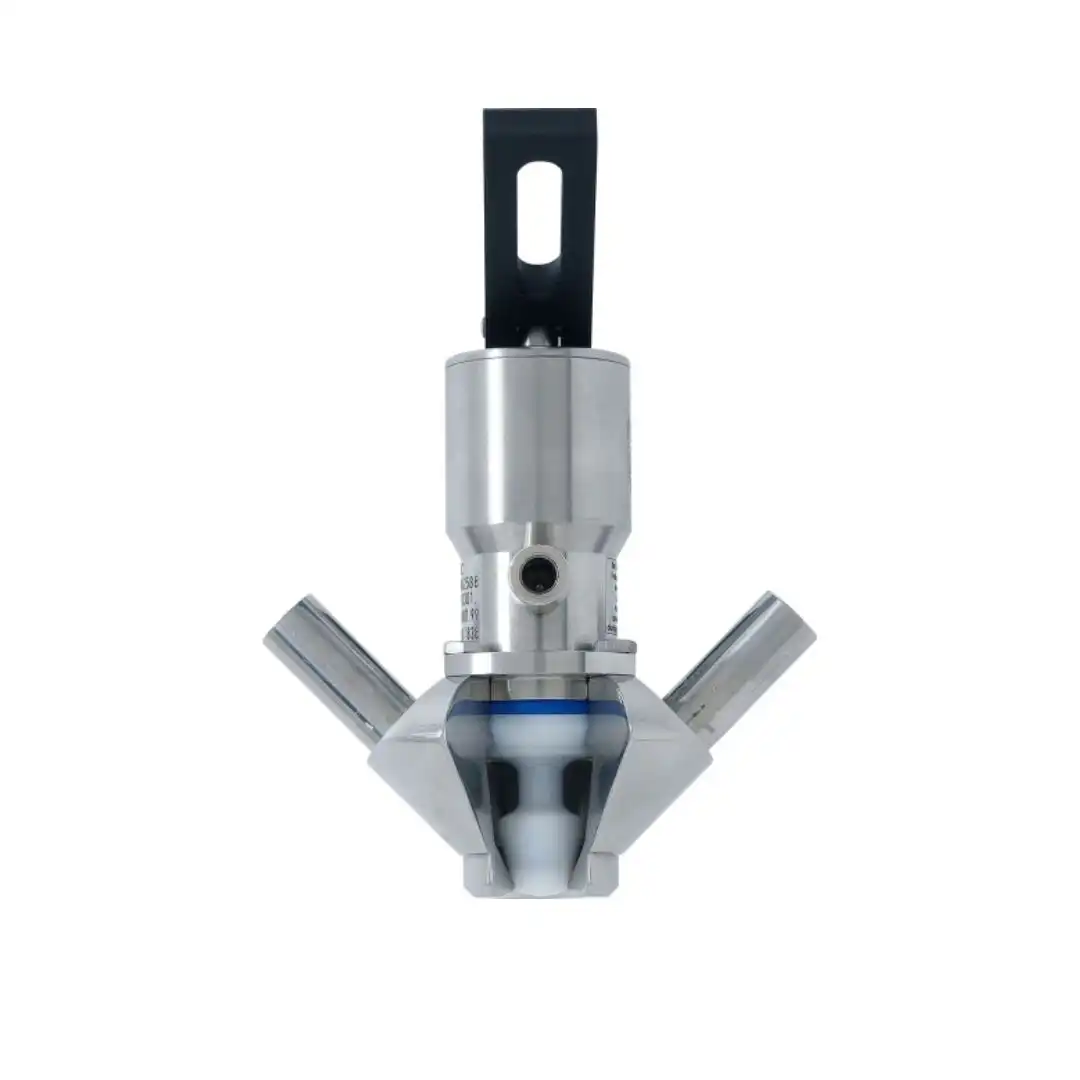

BIOCHECK SAMPLING VALVE
Specification
Your Advantages :
- Design : Valve body made from solid bar dead space free completely drainable connections suitable for orbital welding also available with only 1 port – same price
- Absolute : hermetically sealed against environment
- Product safety : easy and thorough cleaning
- Serviceable : change of seals without special tools
- Maintenance : less standing times
- Efficiency : long life of the PTFE-bellows low spare part costs
- Application : pharmaceutic and bio-chemical industries, cosmetic industry, food, dairy and beverage industries
Technical Data :
Material :
- product contact : AISI316L
- non product : 1.4301/AISI304
- contact
Seals bellows : PTFE
Temperature Maximum :
- Operating temperature : 121 °C (250 °F)
- Sterilization-temperature : 135 °C* (275 °F) short-time
- *Dependent on operating conditionds : (approx. 20min)
Pressure :
- Closing pressure : max.10 bar (145 psi)
- Control air : min. 6 bar (87 psi)
- Pressure : max.10 bar (145 psi)
Surface :
- Product contact optional : Ra <= 0,8 μm electro polished
- Non product contact : Ra <=1,6 μm
Type :
- S = self-closing lever
- = with lever for "open" position
- P = without lever
- H = manual with hand wheel
Stroke :
- Standard : DN 10 = 3 mm
- Mini DN 6 and 8 = 2 mm
- Ingold version = 5 mm
